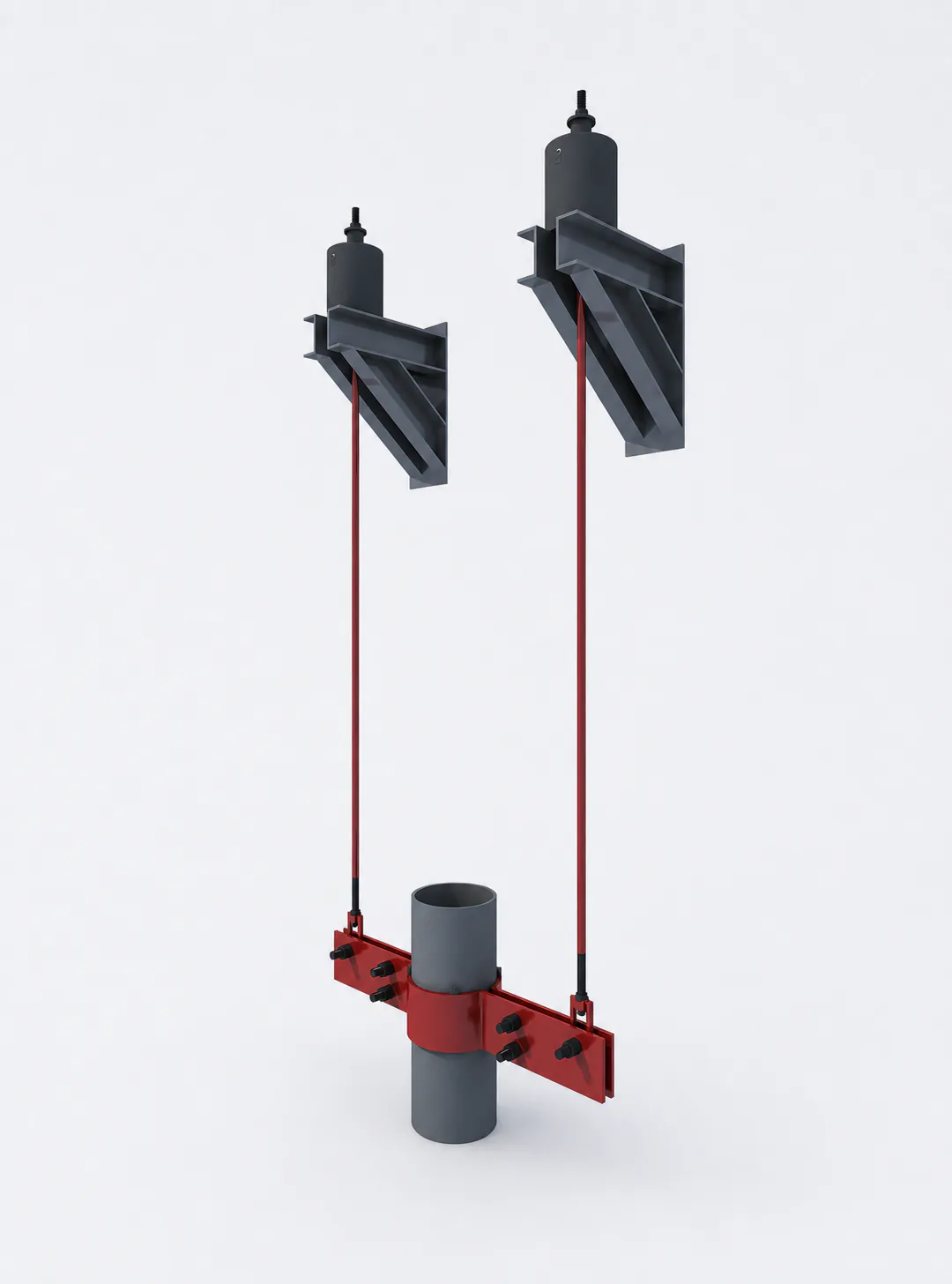

Riser Clamp with T3 Calibrated Spring Components
Technical product presentation based only on information available in Yuanrui's official catalogue.
Assembly Overview
A vertical-pipe support arrangement combining a riser clamp crossarm with two T3 calibrated spring components. The twin-point layout supports the riser through a clamp positioned around the vertical pipe.
Price on request. Send the pipe size and service conditions for a quotation.
Catalogue Information
| Assembly | D9 riser clamp + T3 calibrated spring components |
|---|---|
| Suspension form | Twin spring suspension |
| Pipe orientation | Vertical pipe / riser |
| Selection basis | Pipe size, operating condition and project load |
The information above is limited to the supplied catalogue. Final dimensions, materials and performance requirements should be confirmed for the specific project before ordering.
Riser Clamp with T3 Calibrated Spring Components
A vertical-pipe support arrangement combining a riser clamp crossarm with two T3 calibrated spring components. The twin-point layout supports the riser through a clamp positioned around the vertical pipe.
- Riser clamp configuration for vertical piping
- Twin T3 calibrated spring components
- Two upper structural connection points
- Symmetrical crossarm arrangement around the riser
