Long Pipe Clamp with T1 Calibrated Spring
Technical product presentation based only on information available in Yuanrui's official catalogue.
Assembly Overview

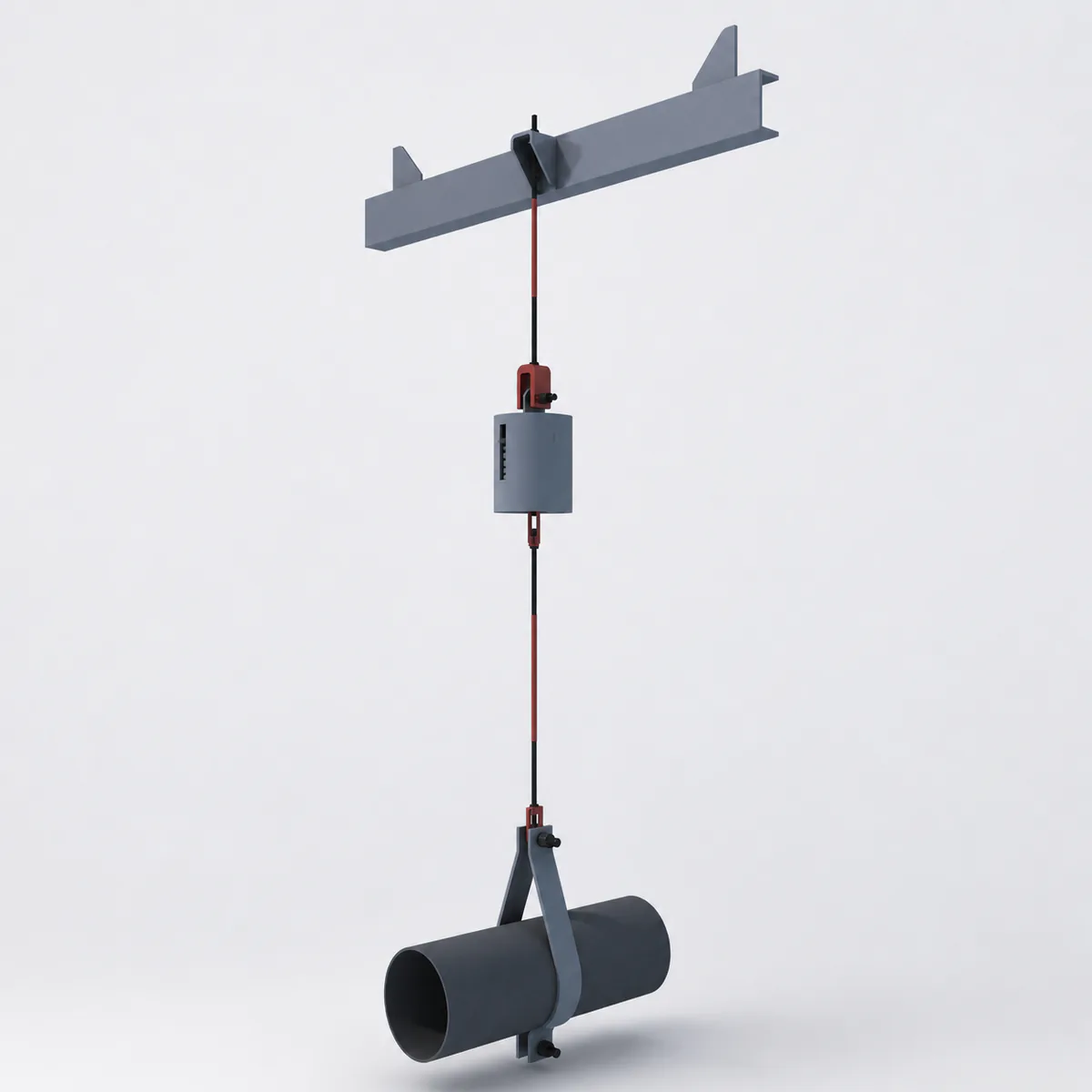

A suspended pipe support assembly combining a long pipe clamp with a T1 single-plate calibrated spring component. The illustrated arrangement transfers the pipe load through the clamp, hanger rod and spring unit to the upper steel structure.
Price on request. Send the pipe size and service conditions for a quotation.
Catalogue Information
| Assembly | D1 long pipe clamp + T1 single-plate calibrated spring |
|---|---|
| Clamp material code | H |
| Clamp material | 12Cr1MoV |
| Catalogue service temperature | 555°C / 540°C |
The information above is limited to the supplied catalogue. Final dimensions, materials and performance requirements should be confirmed for the specific project before ordering.
Long Pipe Clamp with T1 Calibrated Spring
A suspended pipe support assembly combining a long pipe clamp with a T1 single-plate calibrated spring component. The illustrated arrangement transfers the pipe load through the clamp, hanger rod and spring unit to the upper steel structure.
- Long pipe clamp connected to a calibrated spring unit
- Single suspension line between the upper structure and pipe clamp
- Catalogue drawing shows both clamp and plate connection forms
- Intended for project-specific selection by pipe and service condition
Spring Hangers & Supports
Compare the assembly configuration before sending your selection requirements.
Two-Hole Pipe Clamp Rigid Hanger
A rigid suspension arrangement using a two-hole pipe clamp, hanger rod and upper structural connection. The catalogue illustrates alternative clamp material groups for different stated service-temperature…

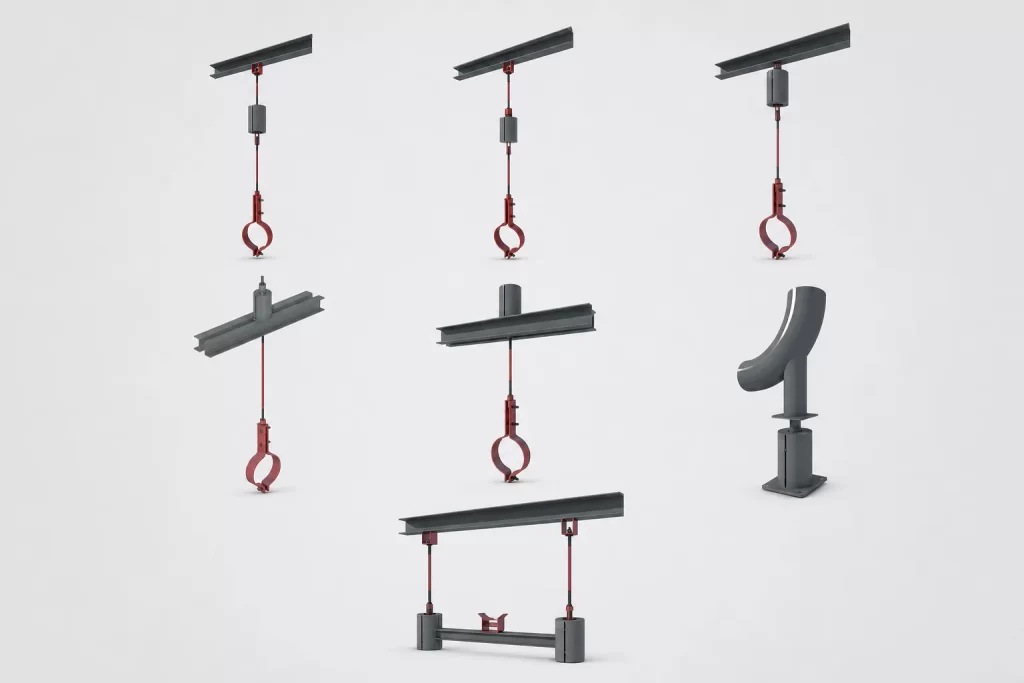

Spring Hanger Installation Forms, Types A—G
Seven typical spring hanger arrangements labelled A—G in the source catalogue, covering the standard installation forms used for suspended piping.
