Spring Hanger Installation Forms, Types A—G
Technical product presentation based only on information available in Yuanrui's official catalogue.
Assembly Overview

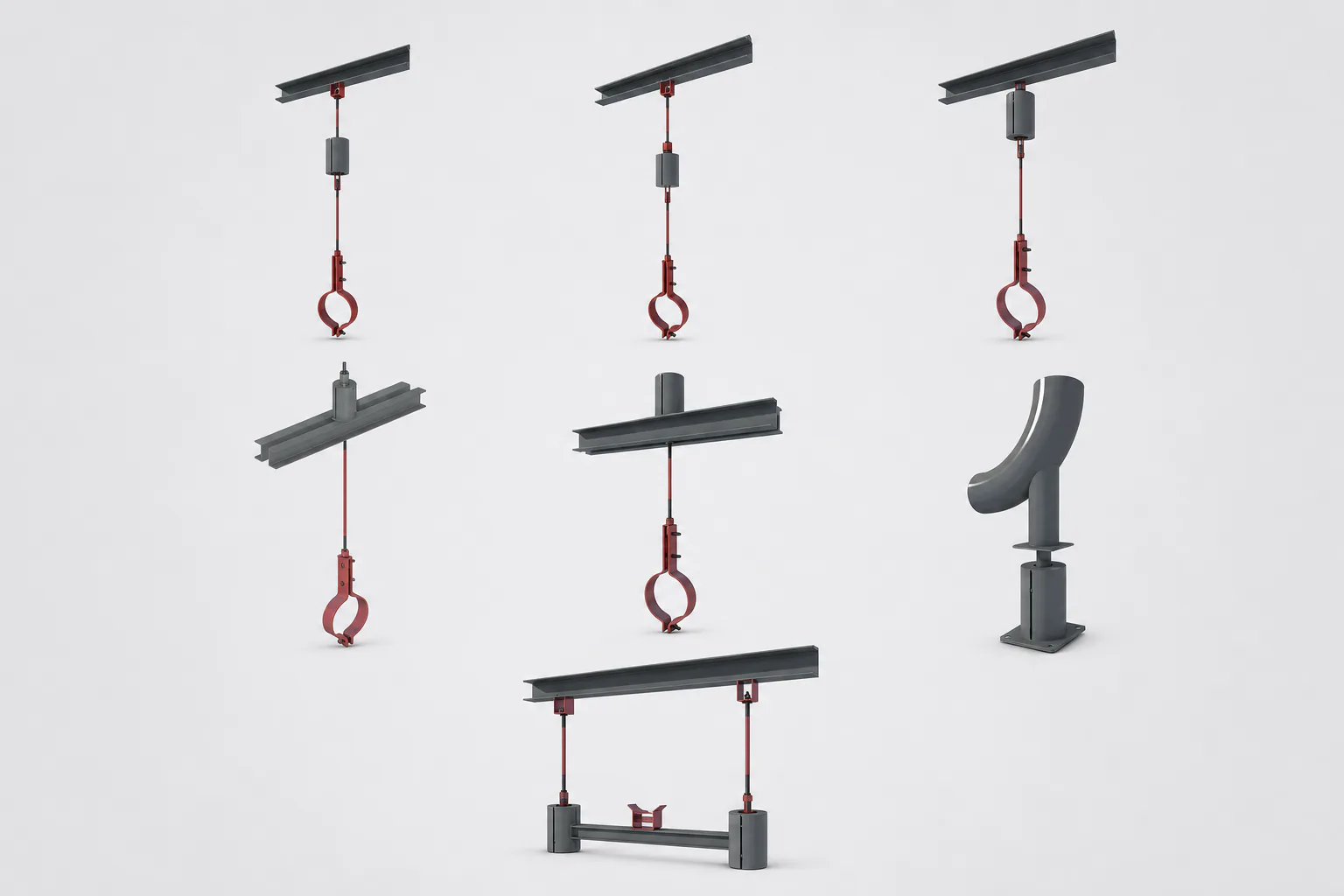

Seven typical spring hanger arrangements labelled A—G in the source catalogue, covering the standard installation forms used for suspended piping.
Price on request. Send the pipe size and service conditions for a quotation.
Catalogue Information
| Product group | TD spring hanger types A—G |
|---|---|
| Installation forms | Seven typical arrangements |
| Application | Suspended piping with spring hanger support |
| Selection basis | Pipe size, load and project conditions |
The information above is limited to the supplied catalogue. Final dimensions, materials and performance requirements should be confirmed for the specific project before ordering.
Spring Hanger Installation Forms, Types A—G
Seven typical spring hanger arrangements labelled A—G in the source catalogue, covering the standard installation forms used for suspended piping.
- Seven installation forms labelled A—G in the catalogue
- Standard suspended-pipe arrangements for spring hanger assemblies
- Form selected according to pipe route and available structure
- Intended for project-specific selection by pipe and service condition
Spring Hangers & Supports
Compare the assembly configuration before sending your selection requirements.

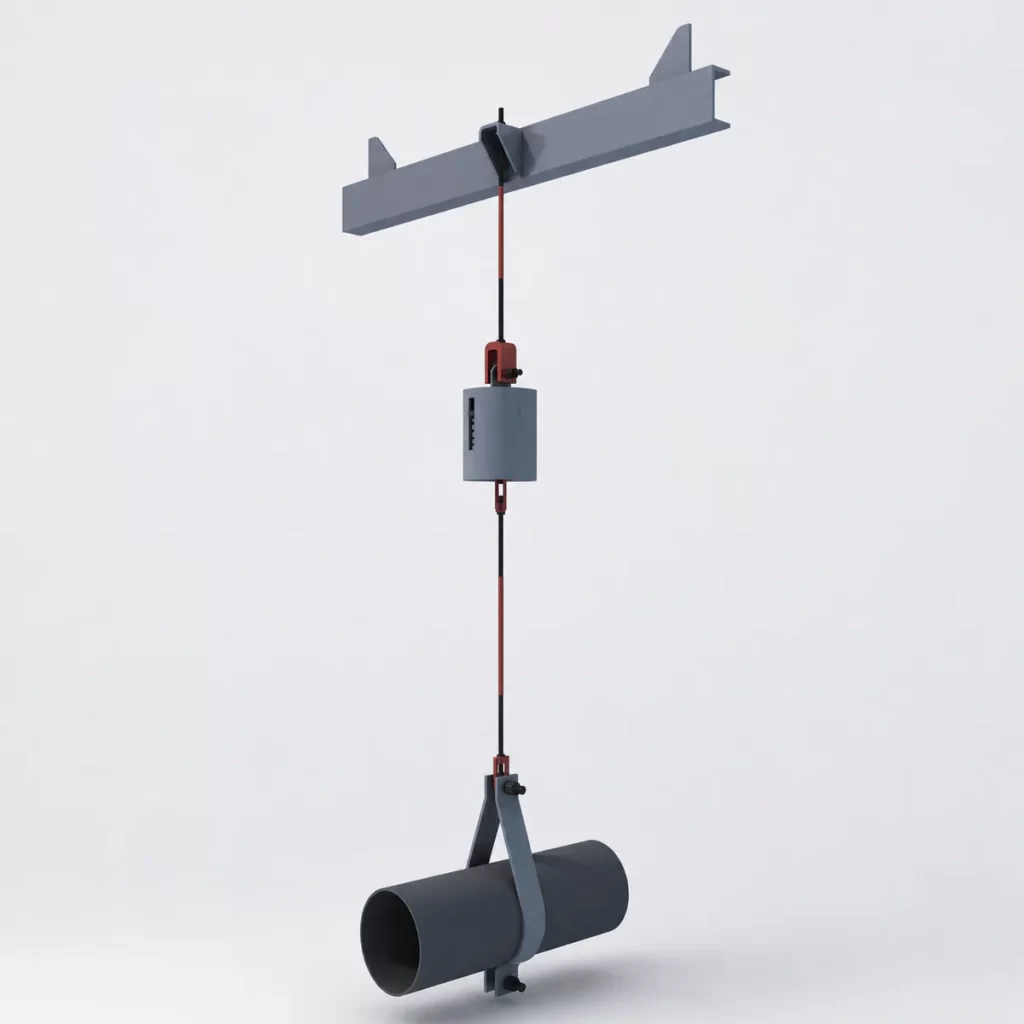

Long Pipe Clamp with T1 Calibrated Spring
A suspended pipe support assembly combining a long pipe clamp with a T1 single-plate calibrated spring component. The illustrated arrangement transfers the pipe load through the…

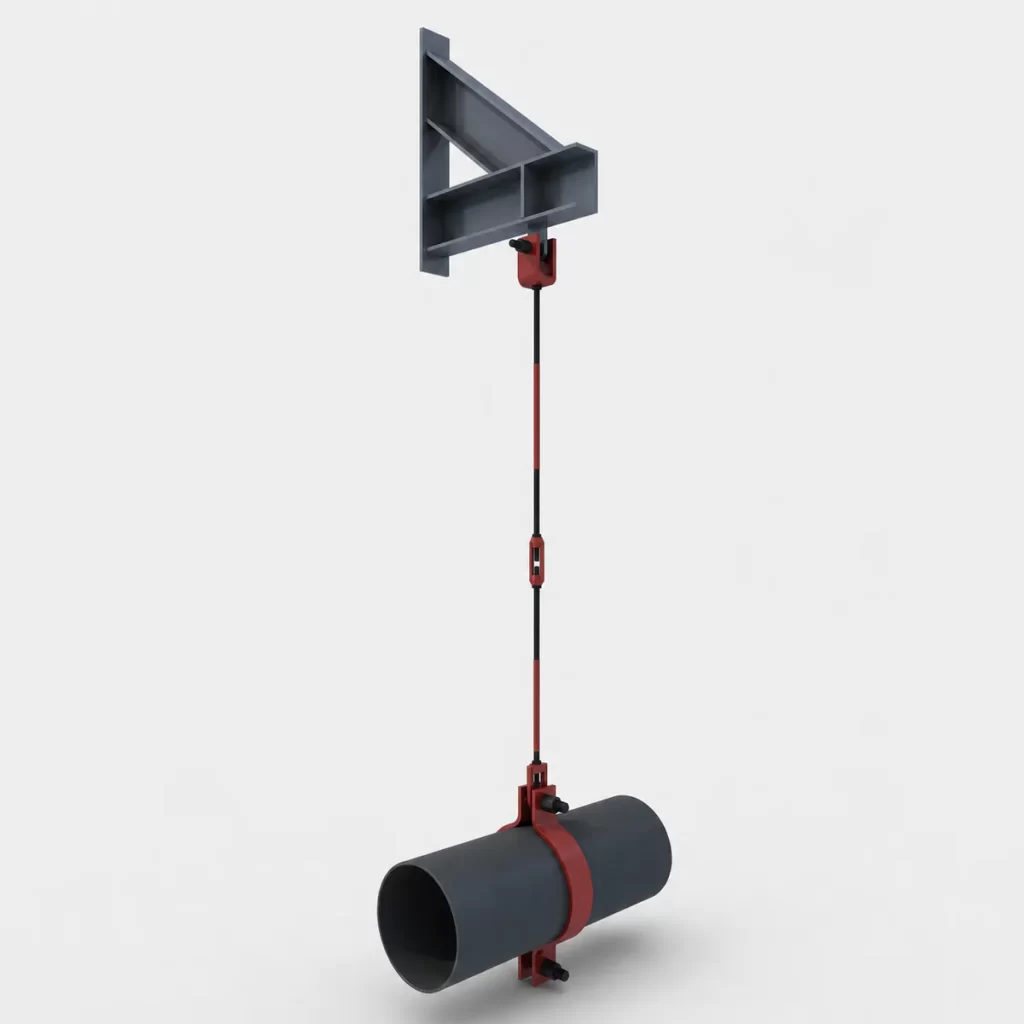

Two-Hole Pipe Clamp Rigid Hanger
A rigid suspension arrangement using a two-hole pipe clamp, hanger rod and upper structural connection. The catalogue illustrates alternative clamp material groups for different stated service-temperature…
