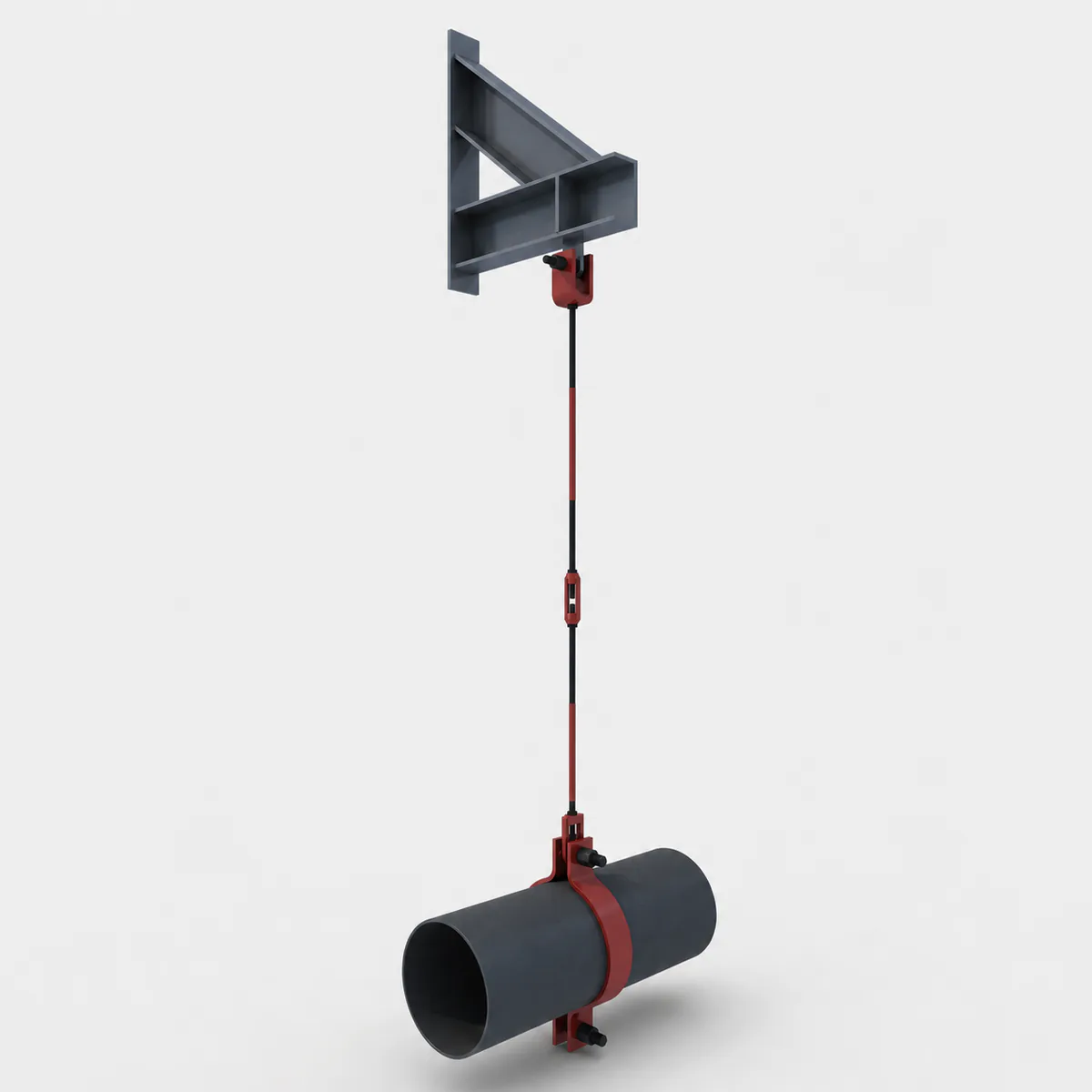

Two-Hole Pipe Clamp Rigid Hanger
Technical product presentation based only on information available in Yuanrui's official catalogue.
Assembly Overview
A rigid suspension arrangement using a two-hole pipe clamp, hanger rod and upper structural connection. The catalogue illustrates alternative clamp material groups for different stated service-temperature ranges.
Price on request. Send the pipe size and service conditions for a quotation.
Catalogue Information
| Assembly | D3 two-hole pipe clamp rigid hanger |
|---|---|
| High-temperature clamp | Material code H · 12Cr1MoV |
| H-group catalogue temperature | 555°C / 540°C |
| Alternative clamp | Material code R/S · 20 steel / Q235-B |
| R/S catalogue temperature | 400°C / 300°C |
The information above is limited to the supplied catalogue. Final dimensions, materials and performance requirements should be confirmed for the specific project before ordering.
Two-Hole Pipe Clamp Rigid Hanger
A rigid suspension arrangement using a two-hole pipe clamp, hanger rod and upper structural connection. The catalogue illustrates alternative clamp material groups for different stated service-temperature ranges.
- Rigid hanger configuration with a two-hole pipe clamp
- Direct load path from the pipe clamp to the upper steel structure
- H and R/S clamp material groups shown in the source catalogue
- Final clamp selection depends on pipe and operating conditions
